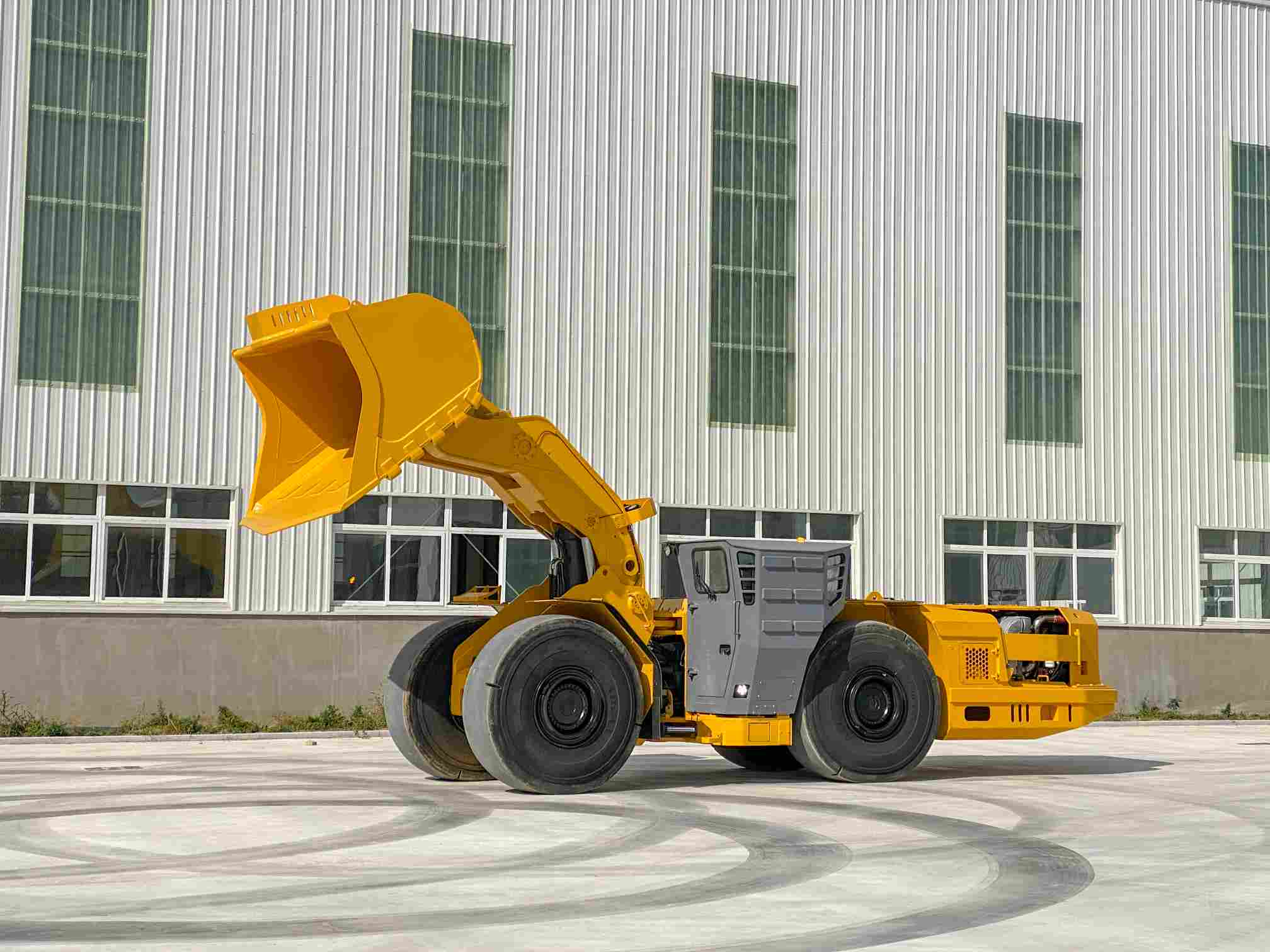

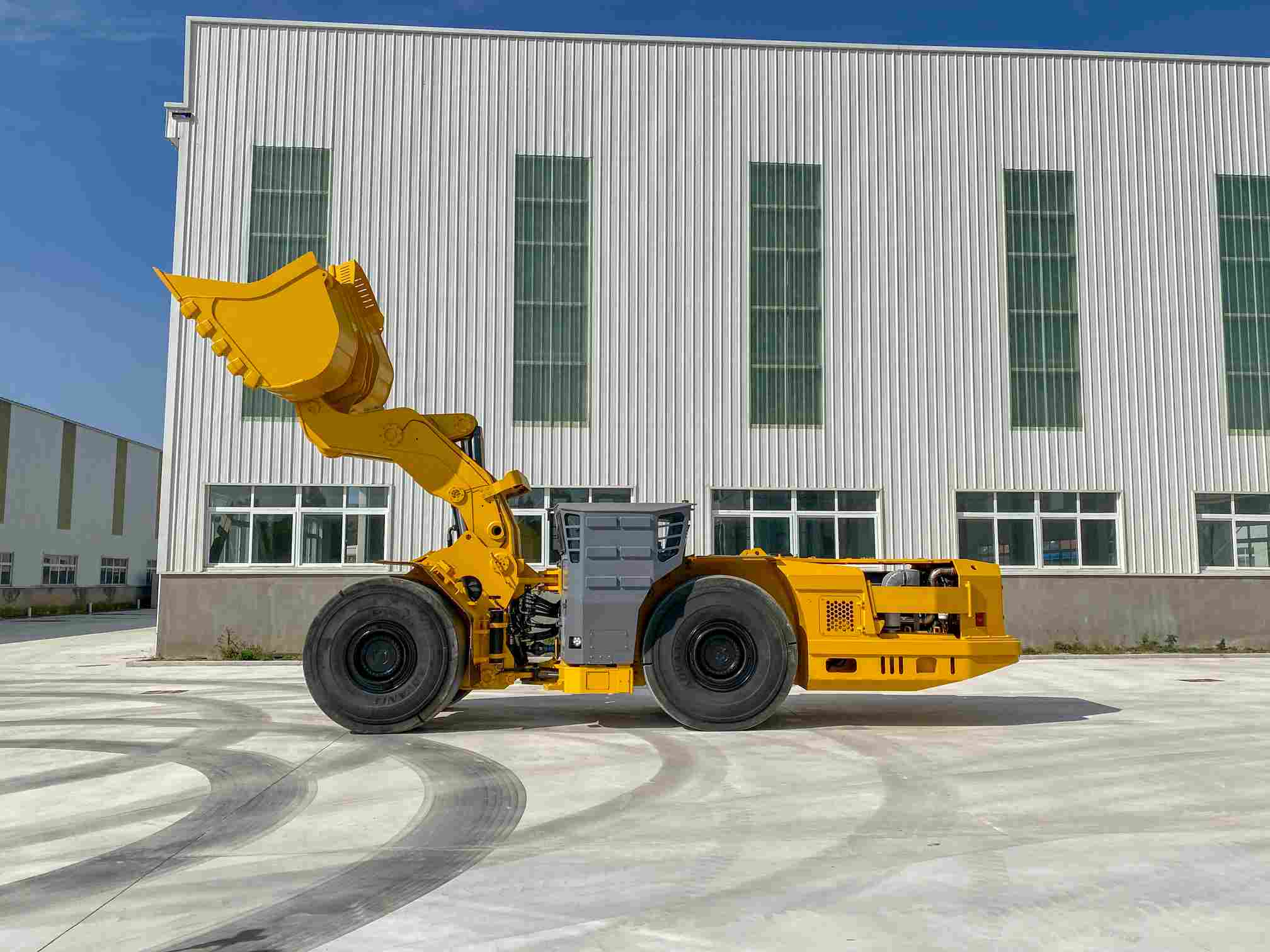

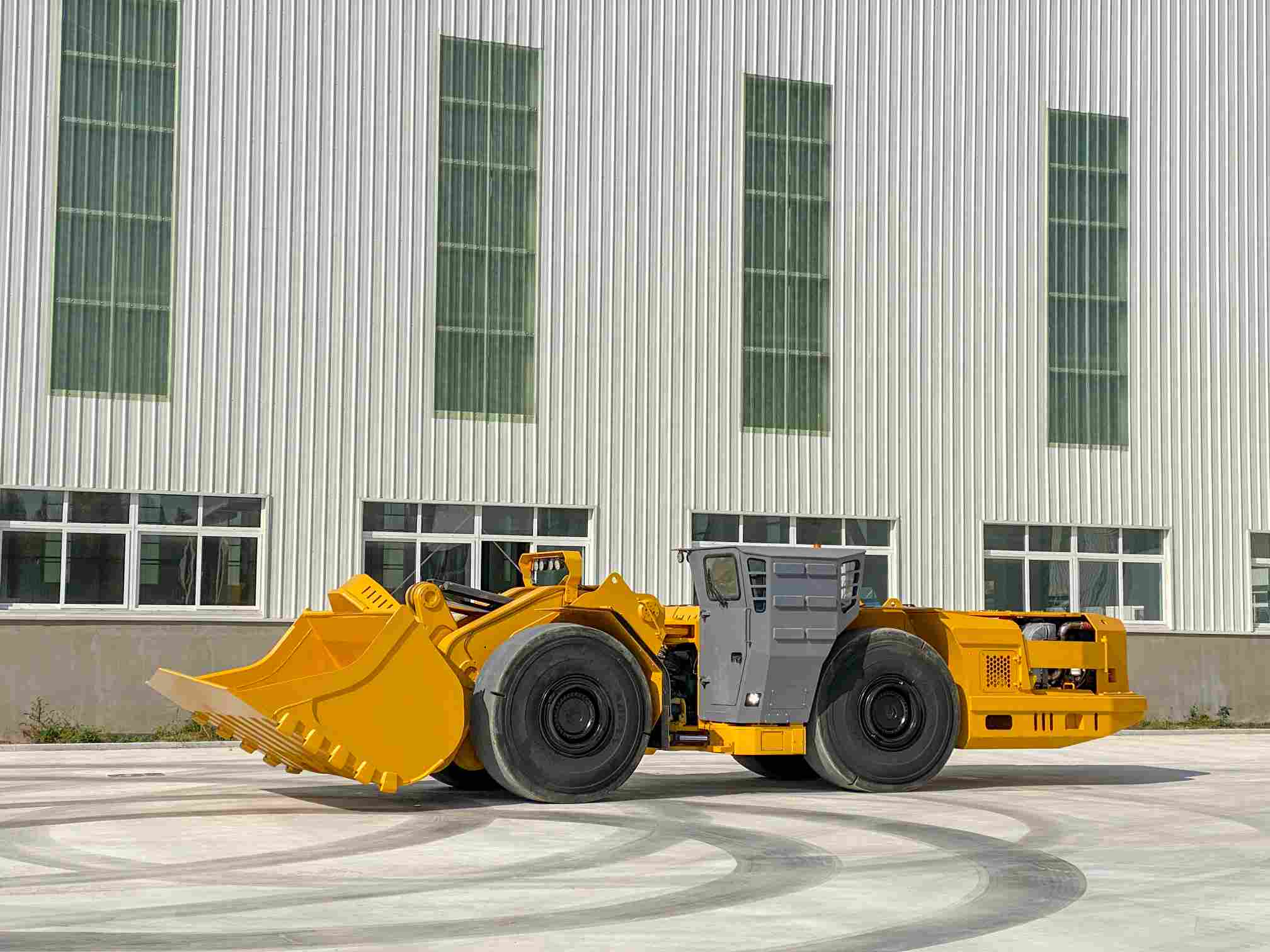

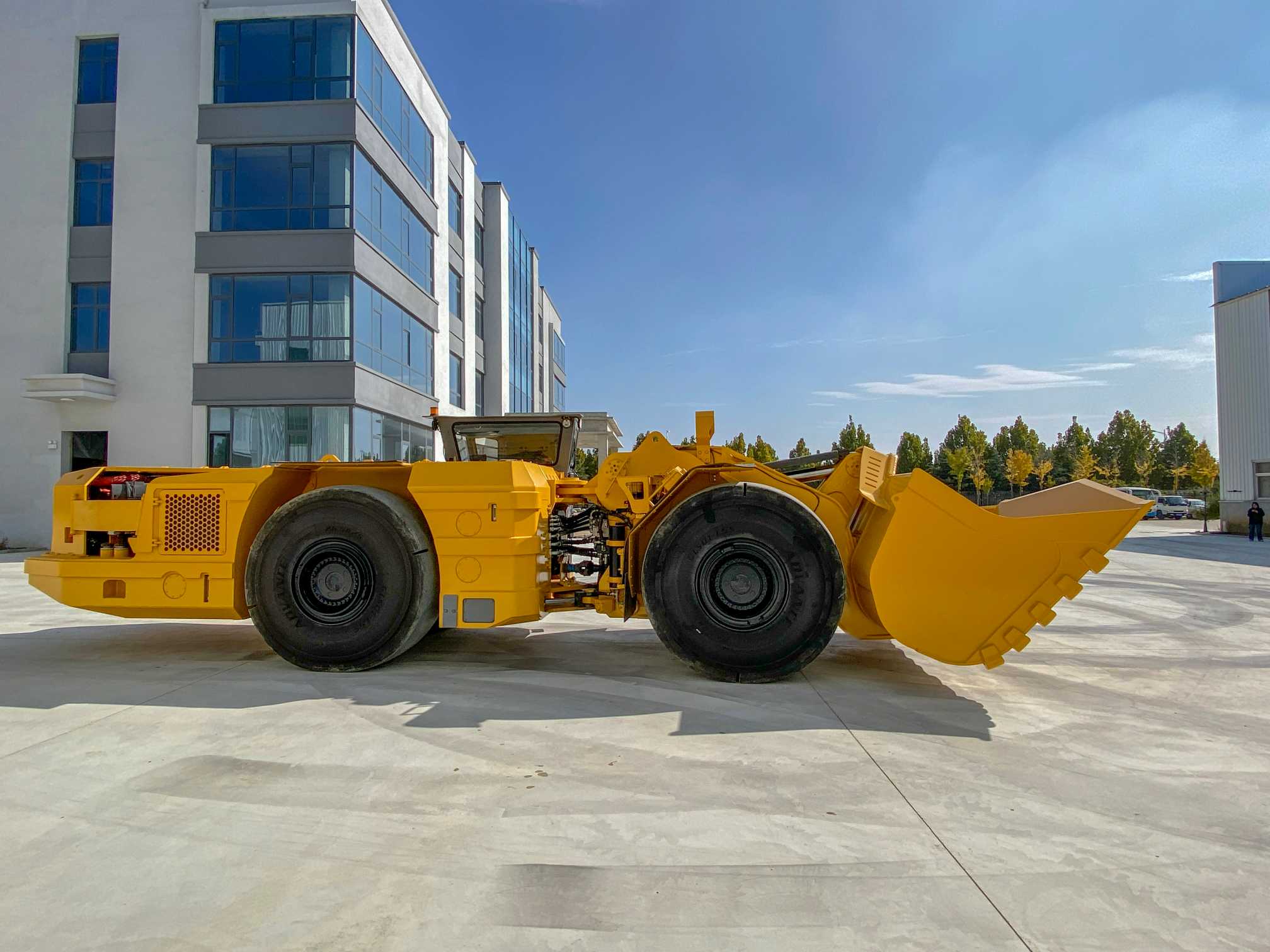

As a next-generation compact loader, the WJ-6 underground LHD loader was specifically developed for large mining. It combines superior performance with intelligent design, ensuring operational safety while significantly improving mining efficiency and economic benefits.
Ultimate Maneuverability: The innovative articulated frame offers a 40° steering angle, enabling flexible operation even in narrow alleys as narrow as 3.4m x 3.4m. The optimized body width and rear-mounted cab design ensure excellent two-way visibility and maneuverability.
Powerful Operating Performance: The enhanced working mechanism provides optimal digging force and loading efficiency. The all-wheel drive system (zero-slip differential at the front axle/limited-slip differential at the rear axle) and SAHR safety braking system ensure traction and braking reliability in harsh conditions.
Intelligent and Environmentally Friendly: The integrated automatic monitoring and alarm system for oil temperature, oil pressure, and other status indicators ensures high power while effectively reducing fuel consumption and exhaust emissions.
Capacity
Standard Bucket…………………......….6m3
Payload…………………………….....…14T
Max Breakout Force………....……...220KN
Max Traction………………..………282KN
Clime Ability(Laden)…………..…..…..25%
Axle Oscillation Angle…………....…….±8°
Engine
Diesel Engine…...…..VOLVO TAD1351VE
Power……………....….....285kw / 2100rpm
Max. torque…….....……1670Nm / 1350rpm
Fuel Consumption…..................350 g / kWh
Emission…………...….....EURO III / Tier 3
Fuel Tank……………...........................430L
Purifier...........Catalytic purifier with silencer
Torque Converter
Brand………...………....................…DANA
Model……………….......................…C9602
Transmission
Brand……………..........................…DANA
Model……………….........................…6422
Axle
Brand……………........................…..Kessler
Model……………...........................…..D106
Type…………………...Rigid planetary axle
Differential(Front)…......................NO-SPIN
Differential(Rear)….........................Standard
Operator’s Compartment
Canopy
ROPS & FOPS closed cab with air-conditioning.
Oil free operator’s compartment
Floor washable with water to reduce dust
Low frequency suspension seat
Dashboard & Displays
Critical warnings and alarms Displayed as warning lights
Instrument Panel Electric gauges
Instrument Panel Illuminated switches
Frame
Rear & Front Frame
High strength welded steel structure with optimized material thicknesses
Tanks Bolted & Welded
Bucket
Hardox 500 Material
Type V shaped(reduce working resistance)
Hydraulics
Filling pump for hydraulic oil
PARKER(USA) multi way valve
Hydraulic pump(Gear Type) for working & steering(PARKER pump option)
Hydraulic Joystick(Pilot) control for working & steering with PARKER valve.
Oil cooler for hydraulic oil
400L Hydraulic oil tank capacity
Meter oil level
Hydraulically operated, center-point articulation, power steering with two double acting cylinders.
The oil flow from steering hydraulic pump is directed to bucket hydraulics when steering is not used. which can enlarge the working pressure.
Strong boom with two lift cylinders.
One dump cylinder.
8μm LEEMIN Filter.
