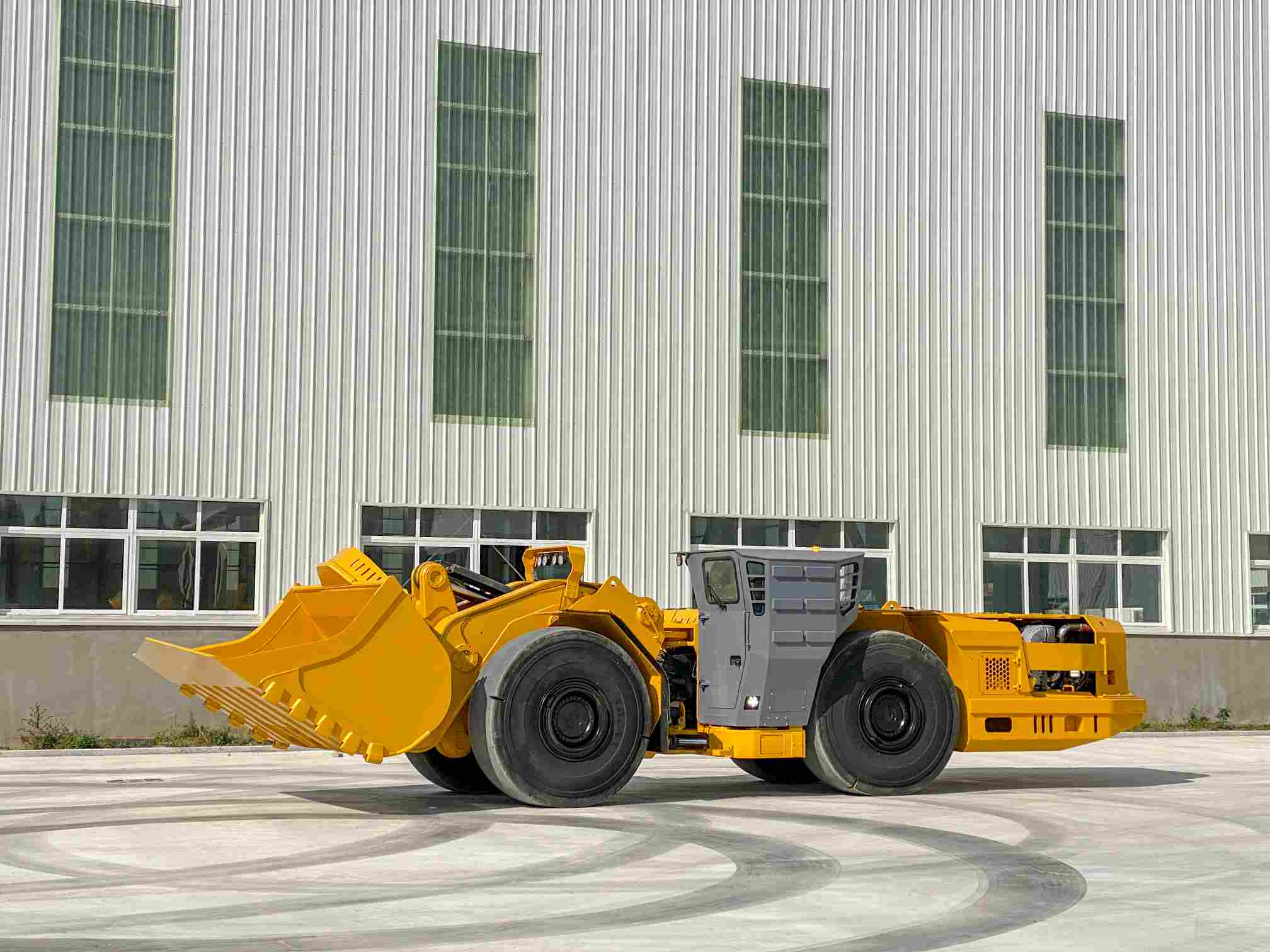

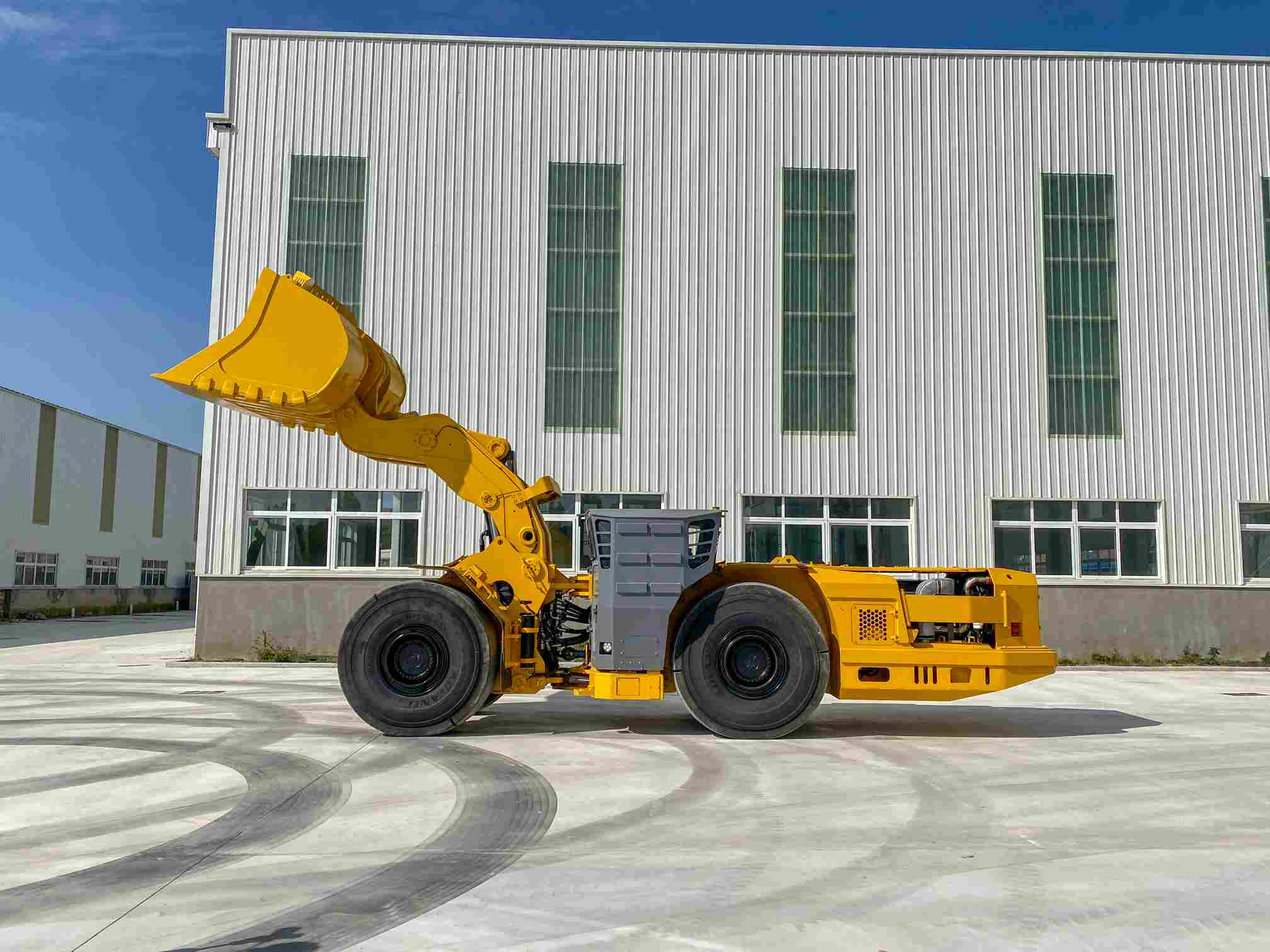

WJ-6 Compact underground Loader - A High-Efficiency Solution for Narrow Vein Mining
The WJ-6 is an innovative machine designed specifically for narrow vein mining. Its compact design and intelligent control system redefine mining efficiency.
The machine can be equipped with an optional remote control system, enabling safer and more flexible mining operations.
14 ton payload LHD underground loader, model WJ-6
Main Features
>> Structure
◆The frames are articulated with 42° turning angle.
◆Ergonomics Canopy with side seat to provide broad bi-direction operation vision.
◆ROPS & FOPS closed cab with air-conditioning.
◆Strong boom with two lifting cylinder.
>> Operation Comfort & Safety
◆Low vibration level in cab with suspension seat.
◆Hydraulic pilot control(JOYSTICK) to reduce the labor intensity of the driver.
◆Self-lock. Once the door is opened, the vehicle can be locked automatically and can not drive, which can protect the vehicle and personal from being injured.
◆Combination design of parking brake, working brake & emergency brake. Braking model is SAHR(spring applied, hydraulic release).
◆Rear and front Camera to provide good view for operation.
>> Early Warning & Maintenance
◆Automatic alarm system for oil temperature, oil pressure and electrical system.
◆Auto lubrication system.
>> Energy-saving & Environment Friendly
◆Catalytic purifier with silencer, which greatly reduces air and noise pollution in working tunnel.
Capacity
Standard Bucket…………………......….6m3
Payload…………………………….....…14T
Max Breakout Force………....……...220KN
Max Traction………………..………282KN
Clime Ability(Laden)…………..…..…..25%
Axle Oscillation Angle…………....…….±8°
Engine
Diesel Engine…...…..VOLVO TAD1351VE
Power……………....….....285kw / 2100rpm
Max. torque…….....……1670Nm / 1350rpm
Fuel Consumption…..................350 g / kWh
Emission…………...….....EURO III / Tier 3
Fuel Tank……………...........................430L
Purifier...........Catalytic purifier with silencer
Extremely maneuverable, a powerful tool for narrow lanes
Designed for extremely narrow lanes up to 5m x 5m, the 40° articulated body allows for flexible turning and easy maneuvering.
Powerful and efficient mining
Optimized working mechanism delivers high digging force and loading efficiency. Four-wheel drive with a differential lock provides strong traction, easily handling harsh working conditions.
Intelligent and reliable, safe and secure
Equipped with automatic monitoring and alarms for key system status to prevent potential accidents. The SAHR fail-safe braking system provides dual safety protection.
Human-centric design, comfortable and environmentally friendly
The rear-mounted side-seat cab offers excellent two-way visibility. The low-vibration design enhances comfort. The environmentally friendly engine and catalyst effectively reduce emissions and noise.
Value-enhancing, precise mining
Supports remote and precise operation modes, directly helping to reduce mining dilution rates and improve overall recovery efficiency.
