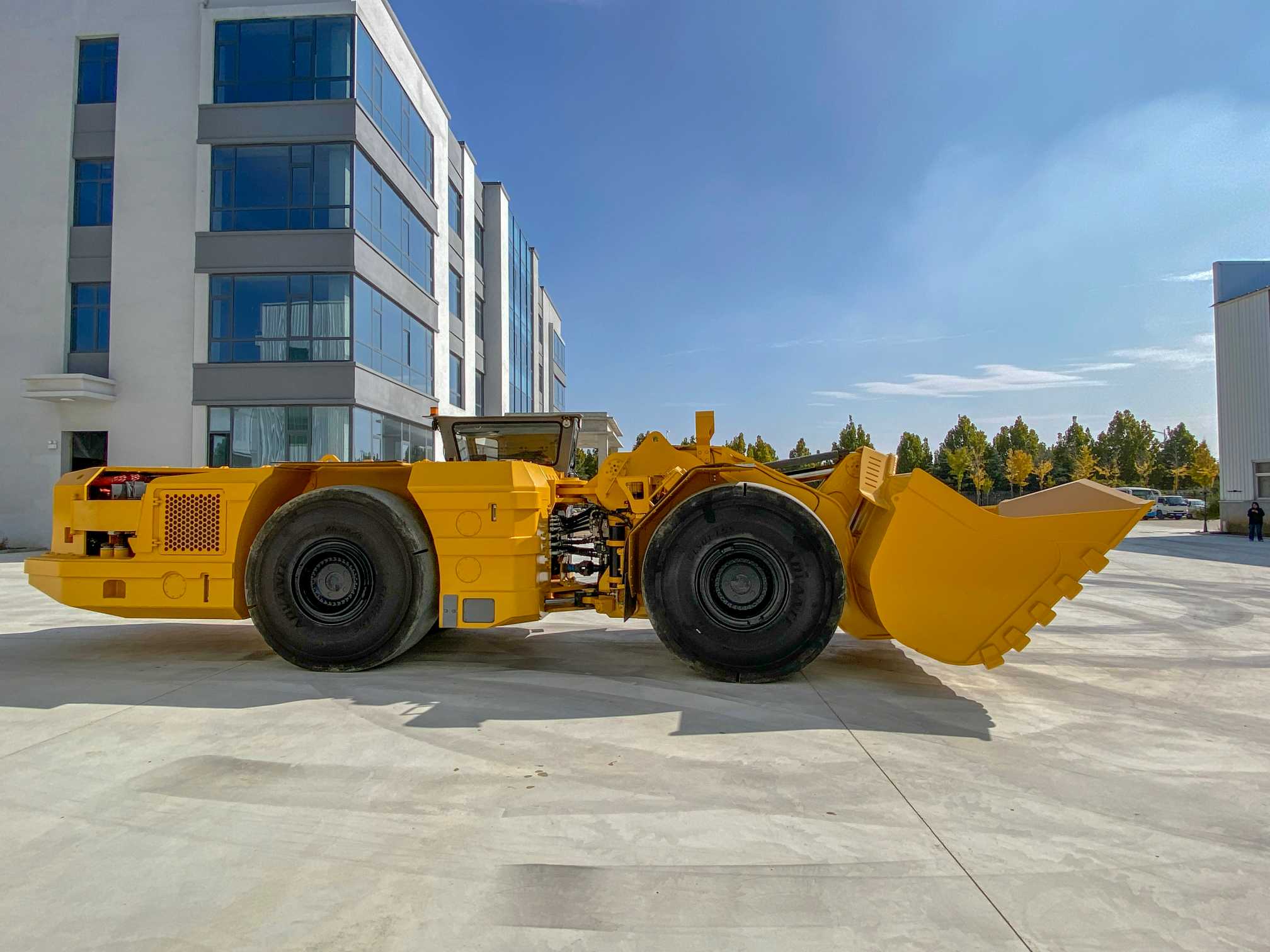

WJ-6 underground LHD: Unleashing Efficient Potential in a Compact Mining Environment

Technical Specification

Dimension

Tramming……....…...10598*2768*2580mm

Min Ground Clearance……….....…..427mm

Max Lift Height…………….…..…5982mm

Max dumping Height………….......2497mm

Max Unloading angle…………….....…..38°

Capacity

Standard Bucket…………………......….6m³

Payload…………………………….....…14T

Max Breakout Force………....……...220KN

Max Traction………………..………282KN

Clime Ability(Laden)…………..…..…..25%

Axle Oscillation Angle…………....…….±8°

Performance

1^st Gear Speed………….....…..…0~4.6km/h

2^nd Gear Speed………….....….…0~8.0km/h

3^rd Gear Speed…………........….0~13.7km/h

4^th Gear Speed………….........…0~23.5km/h

Motion times

Boom Raising Time……......………….≤7.9s

Dump Time…………………....………≤5.5s

Boom Lowering Time……….....…..…≤2.6s

Weight

Operation Weight…………....….…39000kg

Laden Weight……………....….…..53000kg

Front Axle(Empty)………...……....13480kg

Rear axle(Empty)…………....….…25520kg

Front Axle(laden)…………...….….30790kg

Rear Axle(laden)…………....……..22210kg

Power Train

Engine

Diesel Engine…...…..VOLVO TAD1351VE

Power……………....….....285kw / 2100rpm

Max. torque…….....……1670Nm / 1350rpm

Fuel Consumption…..................350 g / kWh

Emission…………...….....EURO III / Tier 3

Fuel Tank……………...........................430L

Purifier...........Catalytic purifier with silencer

Torque Converter

Brand………...………....................…DANA

Model……………….......................…C9602

Transmission

Brand……………..........................…DANA

Model……………….........................…6422

Axle

Brand……………........................…..Kessler

Model……………...........................…..D106

Type…………………...Rigid planetary axle

Differential(Front)…......................NO-SPIN

Differential(Rear)….........................Standard

Wheel & Tire

Wheel Rim………….......................22.00-25

Tire……………………..…………..26.5R25

Faced with increasingly scarce mineral resources and confined, complex mining environments, you need a partner that can navigate tight spaces with ease. The WJ-6 compact loader is the intelligent solution designed to large mines.

Core Advantages, Meeting Challenges Directly:

Dancing in Extremely Confined Spaces] With its innovative 40° steering angle and meticulously optimized compact body, the WJ-6 flexibly maneuvers and efficiently operates in lanes as narrow as 4.5 meters wide, eliminating the dilemma of being unable to turn.

Benchmark in Power and Efficiency, Our redesigned boom and loading mechanism ensure a powerful entry. The powerful four-wheel drive system and differential lock provide excellent traction, ensuring efficient mining even in slippery and rugged conditions.

Intelligent and Reliable Guardian, The integrated intelligent monitoring system acts as an on-board engineer, providing real-time warnings and identifying equipment hazards. The standard SAHR safety braking system provides maintenance-free failsafe protection, ensuring safe production.

A Practitioner of Humanism and Greenness] The rear-mounted side-seat cab offers unparalleled two-way visibility, and its low-vibration design significantly reduces operator fatigue. Equipped with an efficient and environmentally friendly powertrain, it delivers powerful power while significantly reducing fuel consumption and underground emissions, achieving green mining.

The WJ-6 not only improves mining efficiency, but also, through its precise operating mode, directly helps you reduce dilution rates and increase resource recovery value.

Choosing the WJ-6 means creating unlimited production possibilities within limited tunnel space.
