- DALI
- China
- 120 pcs per year
The personnel carrier, designed for complex underground working conditions, is your reliable choice for improving transportation efficiency and personnel safety. It adopts a central corridor turning design, which makes turning as easy as using your arms and fingers, and can flexibly shuttle in narrow spaces. The core German Deutz front end and Dana transmission system are powerful and stable. It is also equipped with a Canadian ECS platinum catalytic purifier, which effectively purifies exhaust gas, achieves clean and low-noise operation, and significantly improves the tunnel environment. The product supports high customization and can provide layouts such as 6 to 30 seats to fully meet vaccine needs.

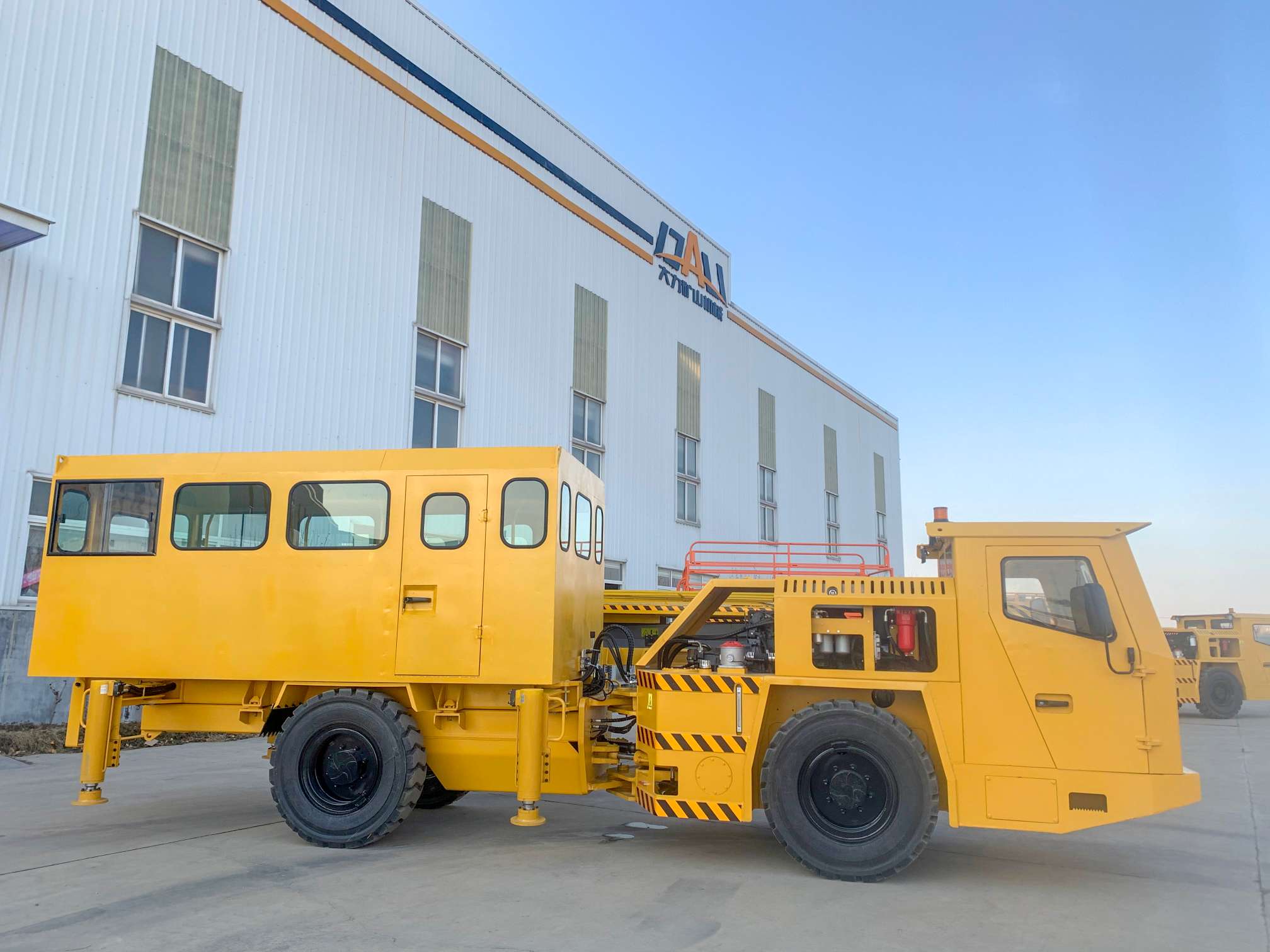

[Underground Mining Personnel Transporter - Designed for Efficient Underground Transportation]
Man carrier, or Personnel and material vehicles (or man-riding vehicles in mining context) refer to vehicles used for transporting personnel in mines. The safe and efficient operation of mining personnel and material vehicles relies on a series of key technologies, standards, and norms, primarily encompassing national and industry technical standards, core safety technologies, vehicle design technologies, as well as inspection and maintenance technologies.
Traditional transport vehicles often struggle in narrow, winding underground tunnels. Our underground personnel transporter, with its innovative 40° articulated steering design, completely overcomes this challenge. Imagine: with a turning radius of just 4.5 meters, it can nimbly navigate even the most complex tunnel networks, making "one-stop" transportation a reality.
[Core Advantages, Visible Excellence]
• Powerful Heart: The German Deutz engine and Dana transmission system are perfectly matched, injecting a strong and stable "heartbeat" into the vehicle, ensuring it can maneuver effortlessly on steep slopes, slippery roads, and other challenging conditions.
• Safety Guardian: The SAHR triple braking system acts as a three-way guard, safeguarding your journey 24/7. The intelligent warning system acts as a tireless co-pilot, constantly monitoring the vehicle's status.
• Environmental Commitment: The Canadian ECS Platinum-grade purification system ensures exhaust emissions that exceed industry standards and provides a fresh air environment underground.
[Tailored to Meet Diverse Needs]
With flexible configurations ranging from 6 to 30 seats, we offer the most suitable solution for every mine operation, whether it's a small maintenance team or a large batch transport for shift changes. Most importantly, each vehicle can be customized to perfectly suit your operation.
No. | Item | Parameter | Unit |
1 | Seats | 24 passengers |
|
2 | Operation Weight | 12500 | kg |
4 | Length | 8980 | mm |
5 | Width | 2000 | mm |
6 | Height | 2550 | mm |
7 | Wheelbase | 4200 | mm |
8 | Front Half Wheelbase | 1700 | mm |
9 | Rear Half Wheelbase | 2500 | mm |
10 | 1st gear | 5.7 | km/h |
11 | 2nd gear | 12.5 | km/h |
12 | 3rd gear | 26 | km/h |
13 | Axle oscillation angle | 8 | ° |
14 | Minimum ground clearance | ≥300 | mm |
1. BRAKE SYSTEM
Service brake design……...wet multi-disc brake
Parking brake design……...SAHR
2. HYDRAULIC SYSTEM.
All elements of steering, work platform and braking system - PERMCO gear pump Hydraulic Components - MICO (Charge Valve, Braking pedal).
3. Electric
Headlight...............................4 pcs
Rear Light..............................2 pcs
Braking light...........................2 pcs
Turning Light..........................2 pcs
Position Light.........................2 pcs
