- DALI
- China
- 120 pcs per year

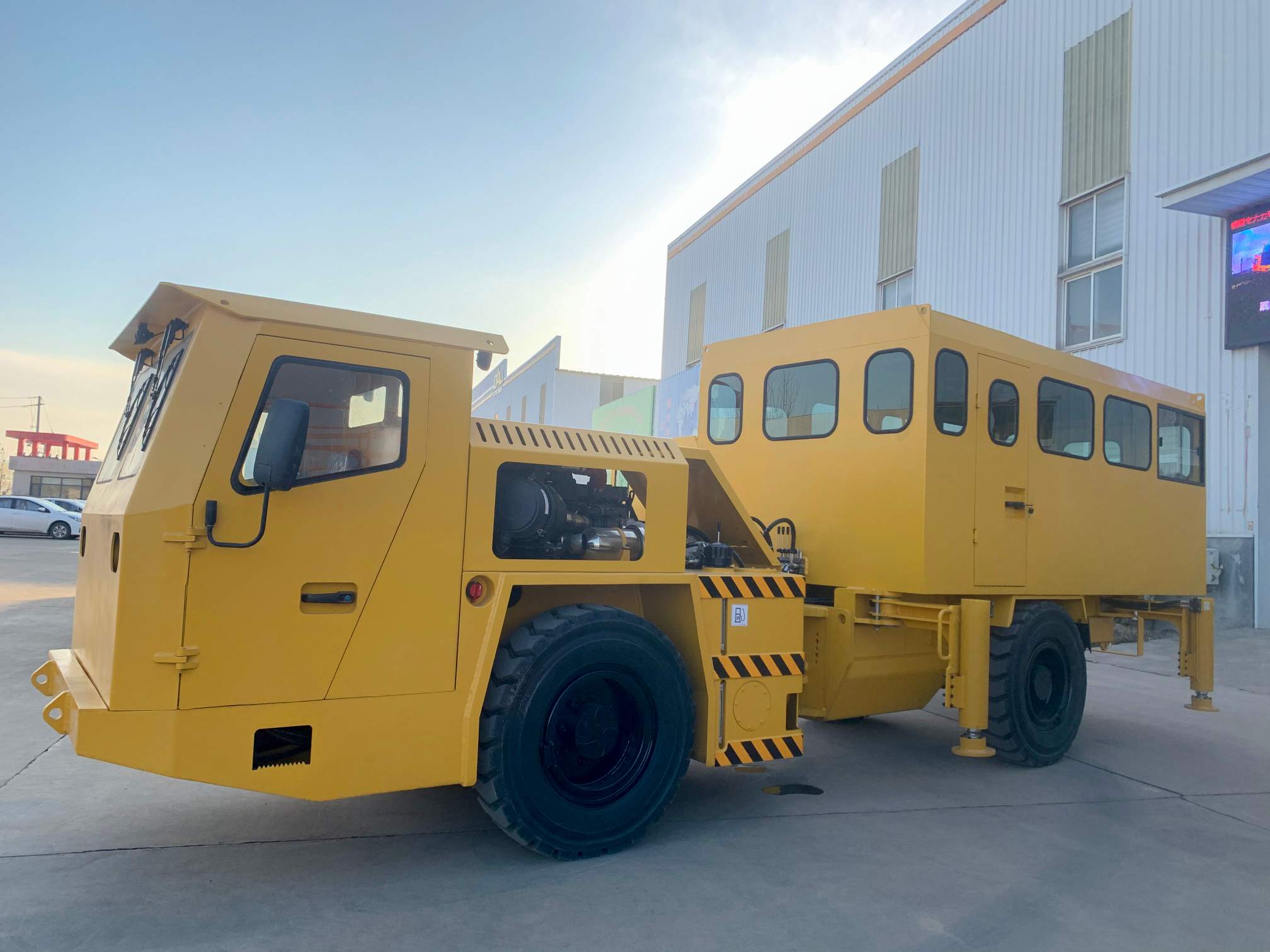

Designed specifically for the harsh underground environment, this man carrier is a critical piece of equipment for improving mine efficiency and humane care. Its centrally articulated body design provides excellent maneuverability in narrow lanes, with flexible steering and a tight turning radius, ensuring efficient commuting.
Powered by a German Deutz turbocharged engine, paired with a sophisticated Dana transmission system, it delivers powerful power and reliable operation. Prioritizing environmental protection and employee health, the carrier is equipped with a Canadian ECS platinum catalytic converter, effectively purifying exhaust gases and reducing noise, directly improving the underground working environment.
To meet diverse needs, we offer flexible customization options with various seating configurations, ranging from 6 to 30 seats. It is an essential and efficient transportation solution for modern mines and tunnel construction.
We hope this version meets your needs. If you require adjustments for specific platforms or audiences, we can continue to optimize it.
Core Values of Underground Mining Personnel Transporters
With DANA transmission and axle, DEUTZ engine TCD2013L04, provide various optional device. reliable performance and high working efficiency. we have 16-38 seats quantity optional. to meet requirements for small to large mine.
Excellent Performance
40° articulated steering with a 4.5m turning radius allows for easy maneuvering in narrow lanes
The Dana drive system and German Deutz engine are perfectly matched, delivering stable and reliable power output
The SAHR triple braking system provides comprehensive safety
Core Values
Flexible Adaptability: 6-30 seats in a variety of configurations to meet the needs of various operational scenarios
Environmentally Friendly and Comfortable: The ECS purification system significantly improves the underground working environment
Intelligent and Reliable: The early warning system provides real-time monitoring and ensures safe operation
Product Positioning
This efficient transport solution, designed specifically for modern mines, offers exceptional maneuverability, reliability, and safety, making it an ideal partner for improving underground transport efficiency.
Engine
Brand……………………….DEUTZ
Model……………………….TCD2013L04 V2
Type………………………...water cooling
Power………………………120 kW / 2300rpm
Air intake system…………..two stage / dry air filter
Exhaust system……………catalytic purifier with muffler
Transmission
Brand……………………….DANA CLARK
Model……………………….1201FT20321
Type………………………...integrated powershift transmission
Axle
Brand……………………….DANA SPICER
Model………………………112-489/490
Differential…………………Rigid Planetary Axle Design
Axle steering angle……….±10°
Main Features
>> Structure
◆The frames are articulated with 40° turning angle.

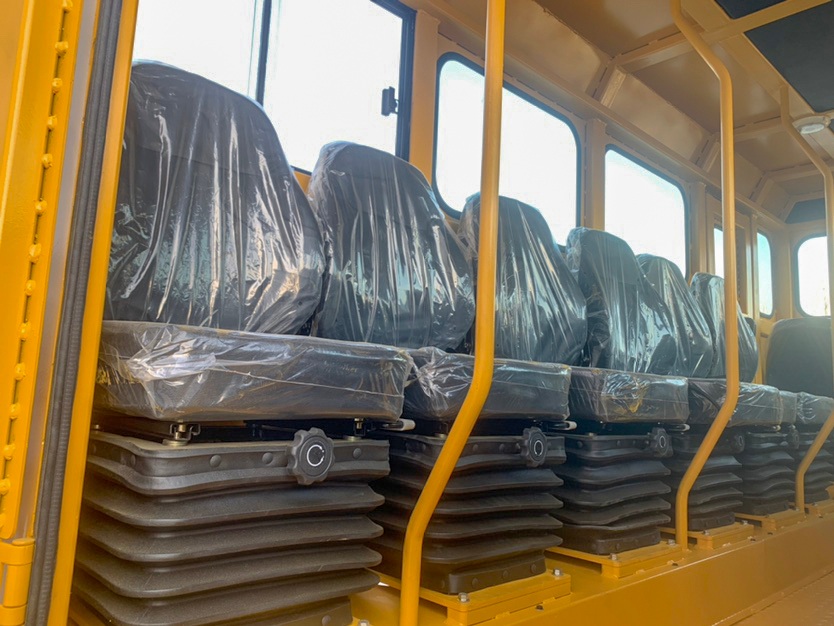

◆Ergonomics Canopy with suspension seat. Closed cab and cassette with air conditioning.
◆Low vibration level in cab.
>> Operation Comfort & Safety
◆Combination design of parking, working & emergency brake ensures good braking performance.
◆Braking is SAHR(spring applied hydraulic release).
◆Axles are equipped differentials. Front is NO-SPIN while rear is standard.
◆Door interlock (applies brakes, blocks steering and bucket/boom movement when door opens).
◆Rear View Camera
◆Engine Fire Suppression system
>> Warning
◆Automatic alarm system for oil temperature, oil pressure and electrical system.
>> Lincoln auto central lubrication system.
>> Energy-saving & Environment Friendly
◆Germany DEUTZ engine Euro III, powerful and low-consumption.
◆Catalytic purifier with silencer, which greatly reduces air and noise pollution in working tunnel.
