- DALI
- China
- 120 pcs per year

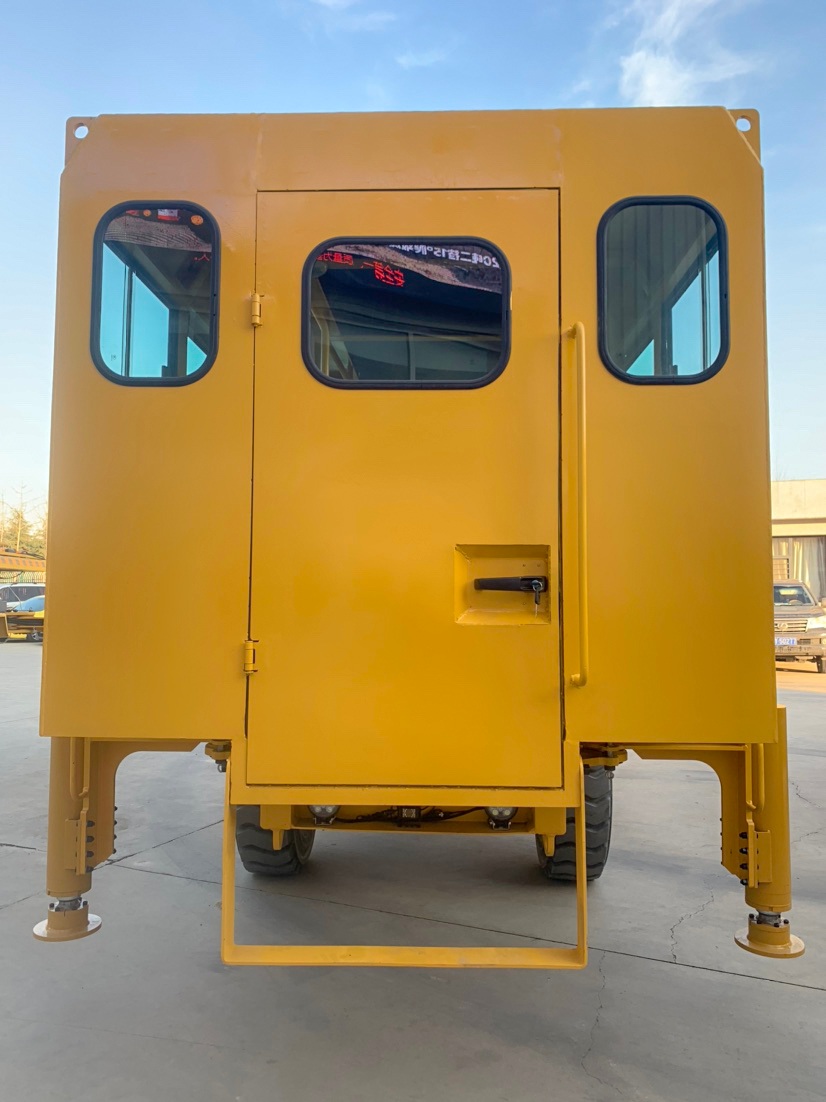

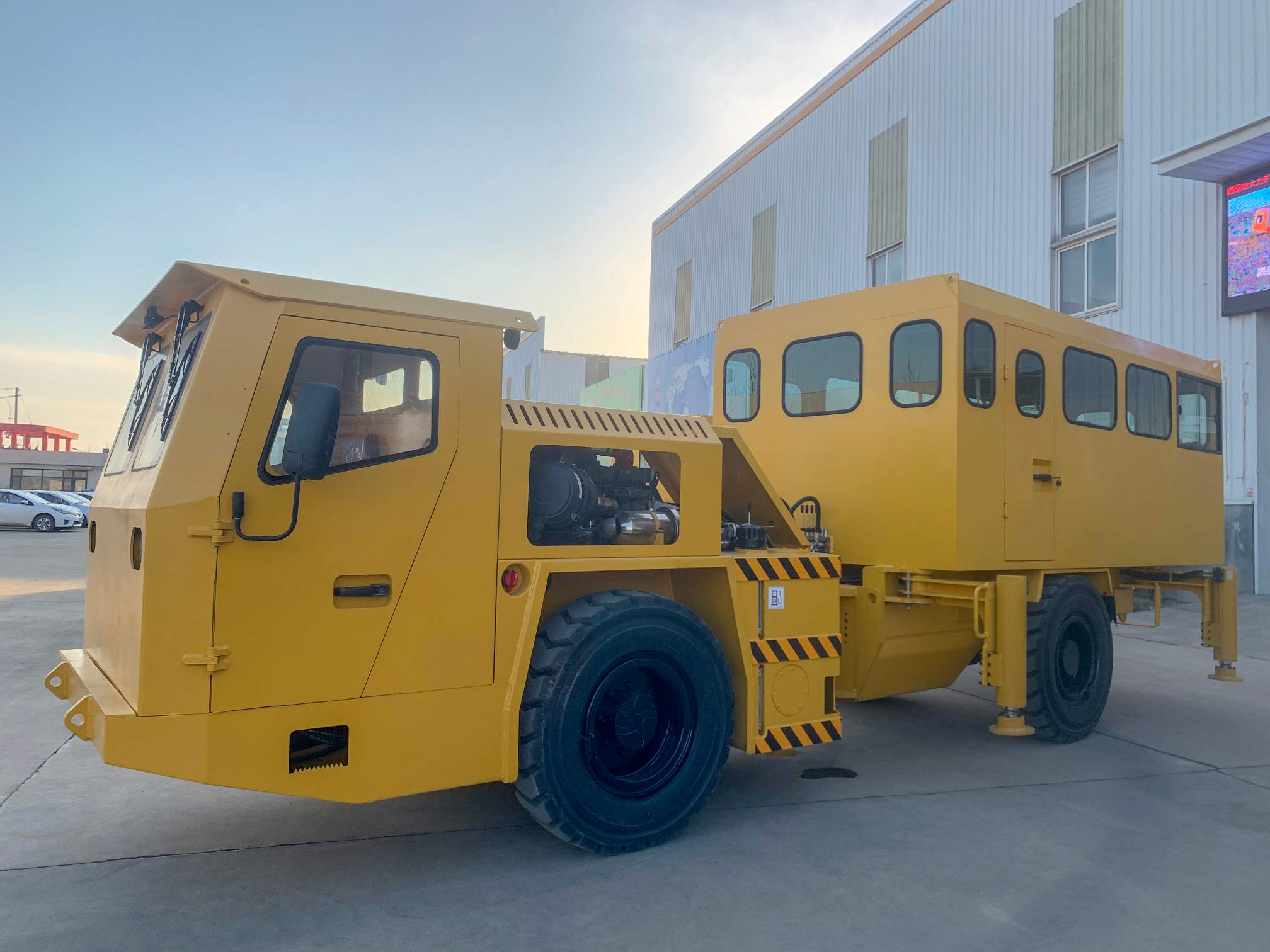

This underground personnel carrier，or man carrier, is designed specifically for use in mine tunnels. Its centrally articulated structure allows for flexible turning and adaptability to narrow working environments. Equipped with a German Deutz engine and a Dana transmission system, it delivers reliable power. It also features a Canadian ECS purification system to effectively reduce exhaust noise pollution. Available in various configurations, ranging from 6 to 30 seats, it meets diverse transport needs.
Summary of the Core Values of Underground Mining Personnel Transporters
The underground personnel carrier is a high-efficiency personnel transfer vehicle specifically designed by DALI for non-coal underground mines. It is equipped with a DEUTZ or CUMMINS liquid-cooled engine, utilizes a Dana integrated gearbox, and features wet brake axles, ensuring safe and efficient braking. Additionally, the vehicle can achieve multi-purpose functionality by being fitted with different interchangeable upper structures, such as lifting platforms, explosive transport modules, and fuel transport modules, among others.
No. | Item | Parameter | Unit |
1 | Seats | 38(cab 2 + cassette 36) | pc |
2 | Operation Weight | 11500 | kg |
4 | Length | 9950 | mm |
5 | Width | 2240 | mm |
6 | Height | 2450 | mm |
7 | Wheelbase | 4650 | mm |
8 | Front Half Wheelbase | 1850 | mm |
9 | Rear Half Wheelbase | 2800 | mm |
10 | 1st gear | 4.8 | km/h |
11 | 2nd gear | 10.5 | km/h |
12 | 3rd gear | 24 | km/h |
13 | Axle oscillation angle | 8 | ° |
14 | Maximum ground clearance | 260 | mm |
15 | Departure angle | 13 | ° |
16 | Gradeability | 25% |
|
17 | Turning angle | ±40 | ° |
18 | Minimum Turning Angle(outer) | 7950 | mm |
19 | Minimum Turning Angle(Inner) | 5300 | mm |
DALI provides complete sets of equipment for various non-coal mines, such as drilling rigs, underground loaders, underground mining trucks, and various auxiliary vehicles, among others. It also offers comprehensive service support to enhance mining operation efficiency.
Precise Positioning
Designed specifically for the complex working conditions of underground mines, this personnel transport solution redefines underground transportation standards with exceptional performance.
Core Advantages
Extraordinary Maneuverability: 40° articulated steering and a 4.5m turning radius allow for conquest in narrow tunnels.
Golden Power: German Deutz engine and Dana transmission system for stability and reliability.
Ultimate Safety: SAHR triple braking and intelligent early warning systems provide comprehensive protection.
Environmentally Friendly: ECS purification system ensures clean emissions and low noise.
Product Value
Flexible Configuration: 6-30 seats available for precise matching.
Excellent Experience: Optimized chassis and driving space enhance driving comfort.
Professional Guarantee: Lean manufacturing provides reliable solutions for underground transportation.
Market Positioning
This product is more than just a means of transportation; it is also a vital piece of equipment that improves mine operational efficiency and safety standards. We are committed to becoming your most trusted partner for underground transportation.
This summary summarizes the product's core competitive advantages and market value, making it easy to use for product promotion, solution presentations, and other scenarios.
