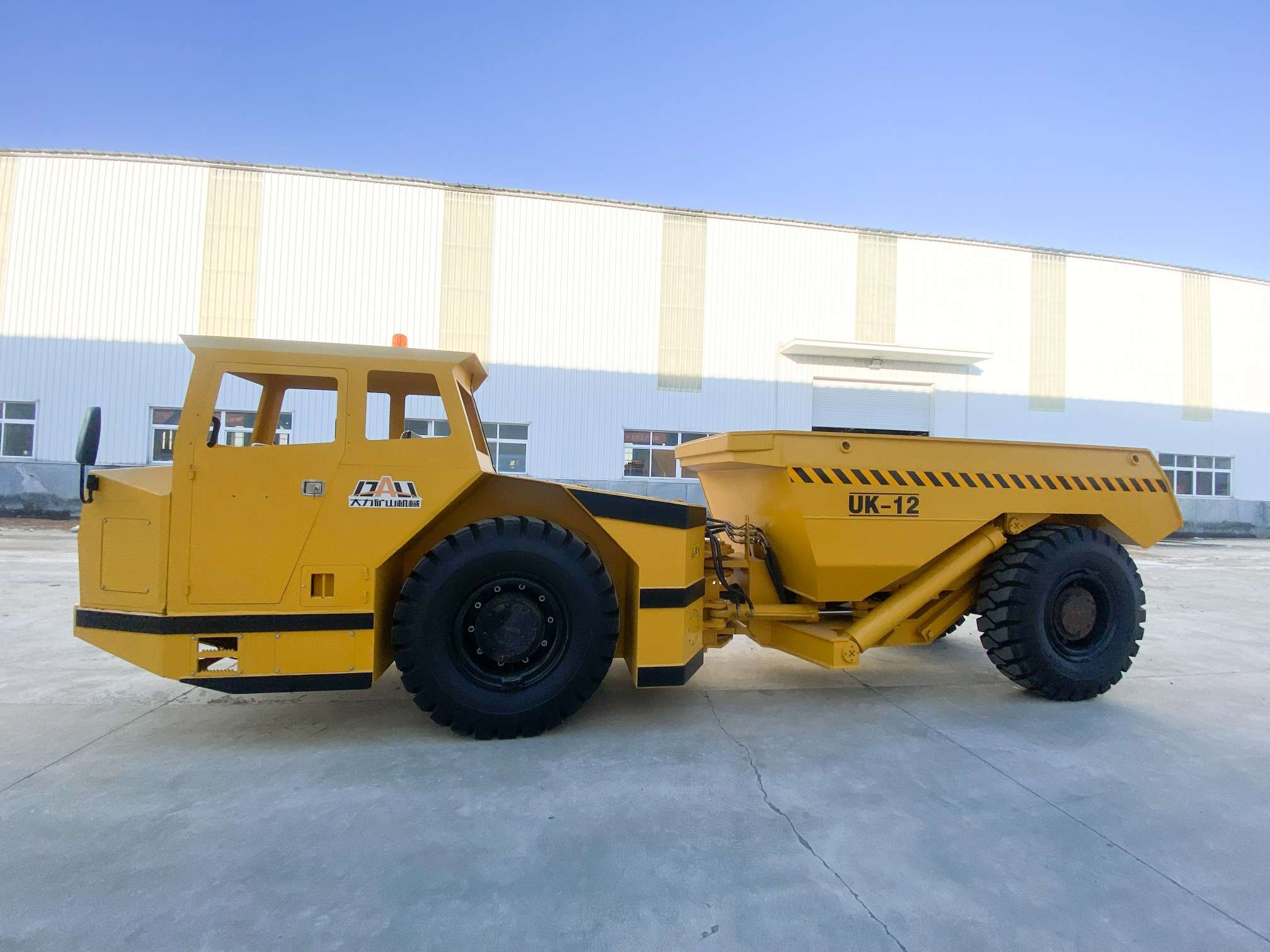

UK-12 Underground Mining Dump Truck: Ingenious Design Sets New Standards for Underground Transportation
In mines thousands of meters deep, every inch of space is precious, and every haul is crucial for profitability. The UK-12, with its exceptional engineering, sets a new benchmark in the 12-ton transport class, making deep-mine operations more efficient and effortless than ever before.
UK-12 is a 12000kg capacity articulated mine truck for underground. can be different box size ar per the ore density. with DEUTZ or Cummins engine as power. DANA transmission demonstrate reliable performance in harsh underground environment.
Industry standard | |
GB∕T 35195-2017 Technical standards for construction machinery and equipment | |
JB/T8436 Standard for tire-type ore trucks for underground mines | |
GB21500 Safety requirements for trackless tire-type mine trucks for underground mines | |
Application | |
Environment Temperature | -25℃~+50℃ |
Mining Altitude | -1500m ~ +5000m |
When working at -1500 ~ +3000 meter, temperature is no higher than 25℃, there is no engine power loss | |
Capacities | |
Tramming capacity | 15000 kg |
Dump box volume | 7.5 m3 |
| |
Main dimensions | |
Overall Size | 7940X2210X2370 mm |
Box Lift Height | 4520 mm |
Wheelbase | 4225 mm |
Min. ground clearance | 340 mm |
Turning radius | 4250 / 7100 mm |
Turning angle | 42° |

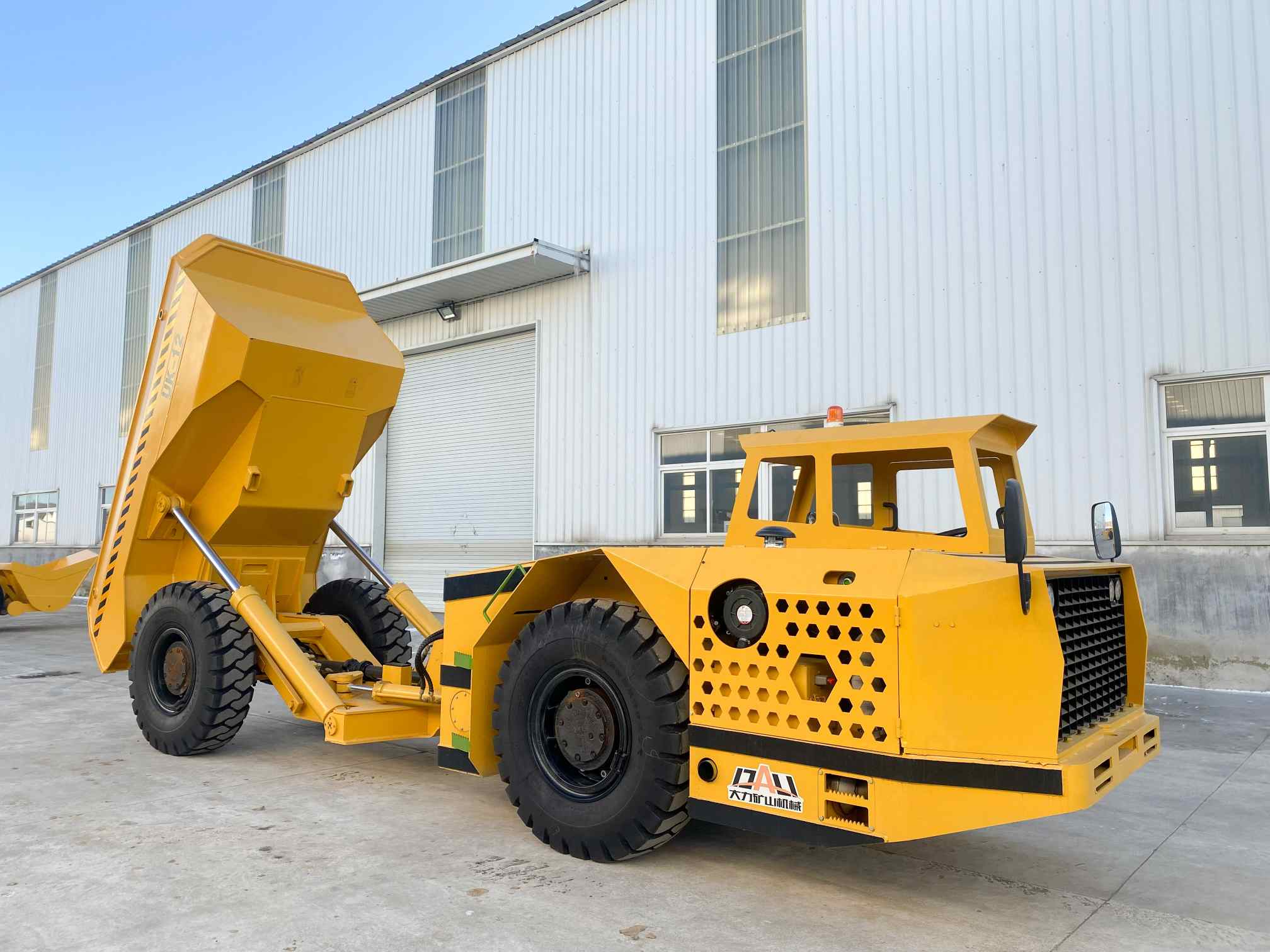

Dump angle | 65° |
| |
Speed | |
1st gear | 0~4.5 km/h |
2nd gear | 0~9.8 km/h |
3rd gear | 0~17.8 km/h |
4th gear | 0~23.5 km/h |
| |
Dump Box Motion Time | |
Discharging time | ≤13s |
Box lowering time | ≤10s |
| |
Weight, empty | |
Operation Weight | 15500 kg |
Front axle | 9550 kg |
Rear axle | 5950 kg |
| |
Weight, Loaded | |
Fully Loaded Weight | 30500 kg |
Front axle | 14550 kg |
Rear axle | 15950 kg |
German Heart, Surging Power
The meticulously designed Deutz intelligent powertrain acts as the "powerful heart" of the machine. Thanks to sophisticated water cooling technology and a turbocharging system, it maintains stable output even under extreme operating conditions. Unique power tuning allows the machine to effortlessly climb heavy loads, ensuring a full load every shift.
Transmission Art, Intelligent Control
Inheriting the essence of Dana transmission, this system seamlessly blends mechanical aesthetics with intelligent control. Like an experienced "driving expert," this intelligent transmission system proactively senses changing operating conditions and intelligently selects the optimal transmission ratio, making operation effortless and significantly improving efficiency.
Agile and Effortless
The innovative center-articulated design gives the machine exceptional maneuverability. It can gracefully pivot and maneuver through narrow alleyways. Its tight turning radius allows it to operate comfortably in spaces where traditional equipment struggles, truly achieving "big things in a small space."
Safeguarding, Infallible
The innovative braking solution elevates safety to a whole new level. Like a tireless "safety guard," the intelligent braking system responds swiftly to any emergency, providing solid protection for both equipment and personnel.
