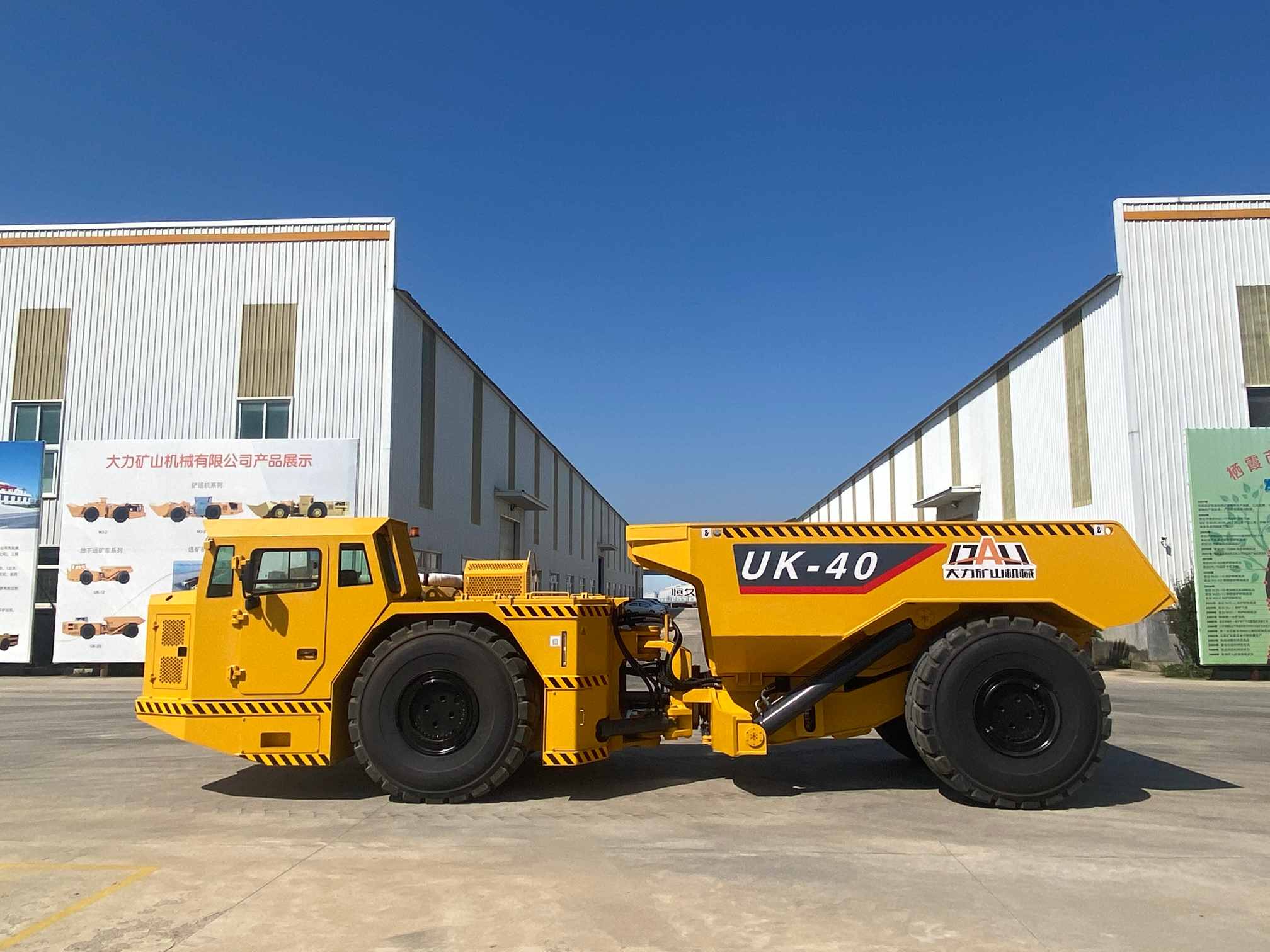

The UK-40 articulated underground mine truck is a large truck designed specifically for underground mines, with a load capacity of 40 tons. This equipment adopts the world's top power system, with fast climbing speed and high production efficiency. At full load, the total weight of the equipment is 78.5 tons, and it can travel at full speed in 4 gears at a speed of no less than 13.0 km/h on a 25% slope. It has an absolute production efficiency advantage in trucks of the same level.
UK-40 MINE DUMP TRUCK
A1. The front and rear frames of the articulated truck are articulated with good performance and easy operation.
A2. Ergonomics Canopy with comfortable operation. Spring seat with belt. View of 360°. make the underground mine truck comfortable operation.
A3. Fully closed cab with air conditioning.
B1. 4 wheels driving and braking.
B2. The combination design of parking brake, working brake and emergency brake has good braking effect and high safety factor. Braking model is SAHR(spring applied, hydraulic release).
B3. Rear camera to provide good view for the operator.
B4. Full hydraulic steering system, easy and flexible operation. Hydraulic pilot control to reduce the labor intensity of the driver.
B5. Inductive switch is equipped at the door of cab, when the door is open, the transmission will be locked to keep the vehicle safe.
Main Configuration of the Underground mining truck
Engine：VOLVO TAD1650VE/ 405kw / 1900rpm
Torque Converter：DANA CL8000
Transmission：DANA 8000
Axle：DANA53R300, Rigid Planetary Axle
Hydraulic Pump：Gear Type
Wheel & Tire：TECHKING 29.5R25 ETNT
1. Frames, Cab of the articulated truck
The frame is made of Q460 high-strength alloy steel, and the front and rear frames are connected by swinging hinge.
Closed cab, equipped with air conditioning, in compliance with FOPS/ROPS standards, with a framed steel structure cab, safe and reliable.
The frames on both sides of the bucket body are designed with double layers inside, and the outside is smooth, increasing strength and avoiding unnecessary scratches.
2. Safety System ○Optional ●Standard
○Engine Fire Suppression system
●Cameras at four sides, front-rear-left side-right side
●Equip electric retarder to provide equipment safety performance and operational efficiency
●Exhaust pipe insulation
●Heat source isolation protective cover
●Portable fire extinguisher 8kg x 2
●Turbocharger cover
○Emergency release electric pump
○Emergency steering electric pump
1. Hydraulic System of the mine dumper
Working / Steering Hydraulic System | Permco pump Italy HC valve Danfoss hydraulic steering mechanism |
Adopting dual pump combined flow technology, prioritizing steering. When the vehicle does not turn, hydraulic oil is automatically supplied to the working system, reducing unnecessary energy consumption and making it more energy-efficient. | |
Steering cylinder，2pcs | |
Lifting cylinder，2pcs | |
Braking Hydraulic System | Posi-stop |
MICO oil charging valve MICO braking pedal | |
Hydraulic hose | Flame retardant and anti-static rubber hose |
2. Electric System of the mine dump truck
A 7-inch display screen can display vehicle operation related data and fault alarms. It comes standard with a rotating alarm light and reverse horn, as well as a vehicle imaging system. It uses flame-retardant and anti-static wiring harnesses and waterproof connectors.
Battery：12v X 2
Alternator：28V，150A
Starter：24V/5.5kW
Headlight：LED，4pcs
Cab Light：LED，2pcs
Tail light：LED，2pcs
Braking light：2pcs
Turning light：2 pcs
Clearance lights：2pcs
Flashing beacon：1pc
Horn：1pc
Lincoln auto lubrication system
3. Energy Isolation
Lockup main power switch
Emergency stop button
Articulation locking bar
4. Documents of the underground mine truck
Operation-maintenance manual
Parts manual
Hydraulic diagram
Electric diagram
