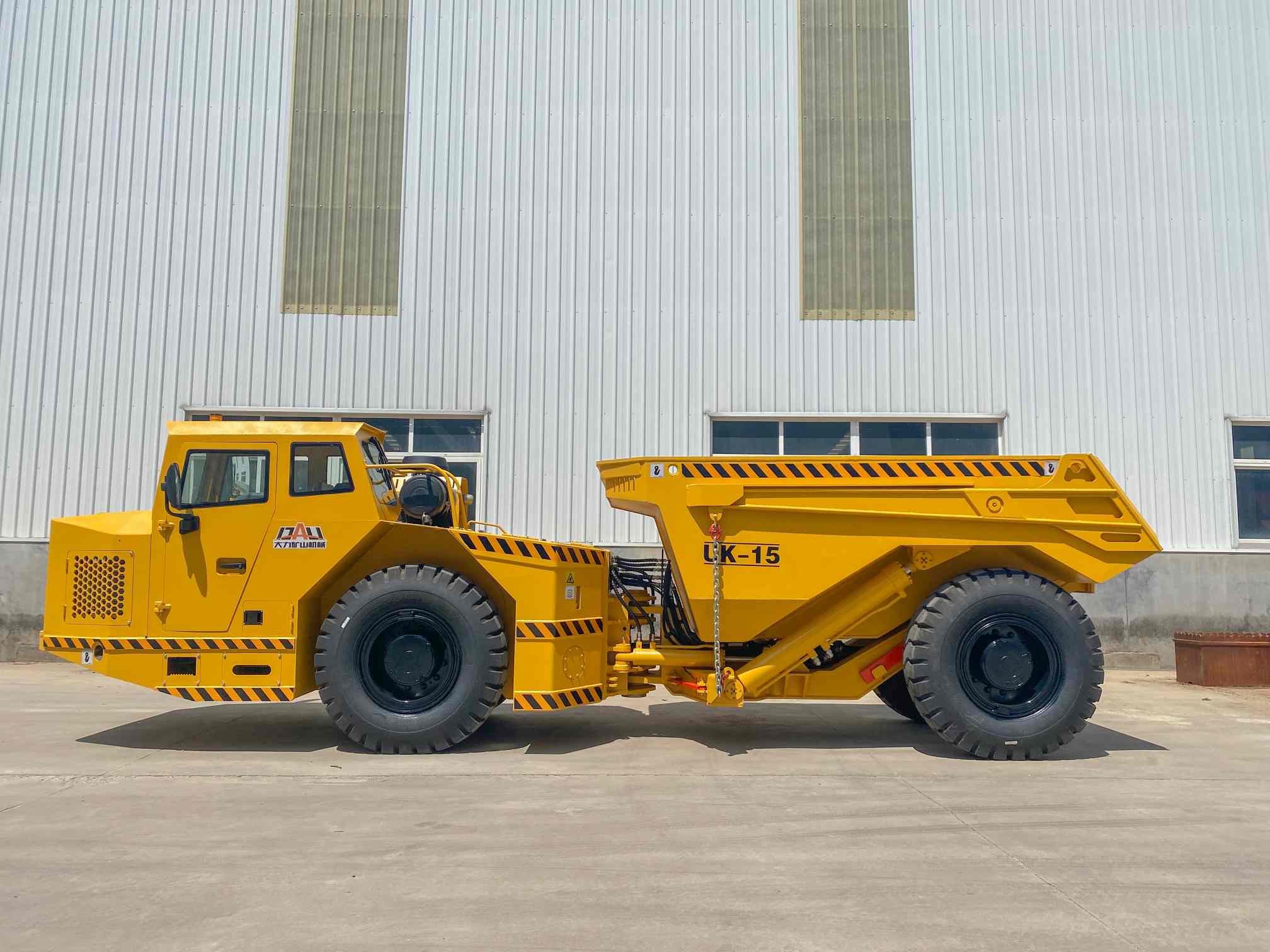

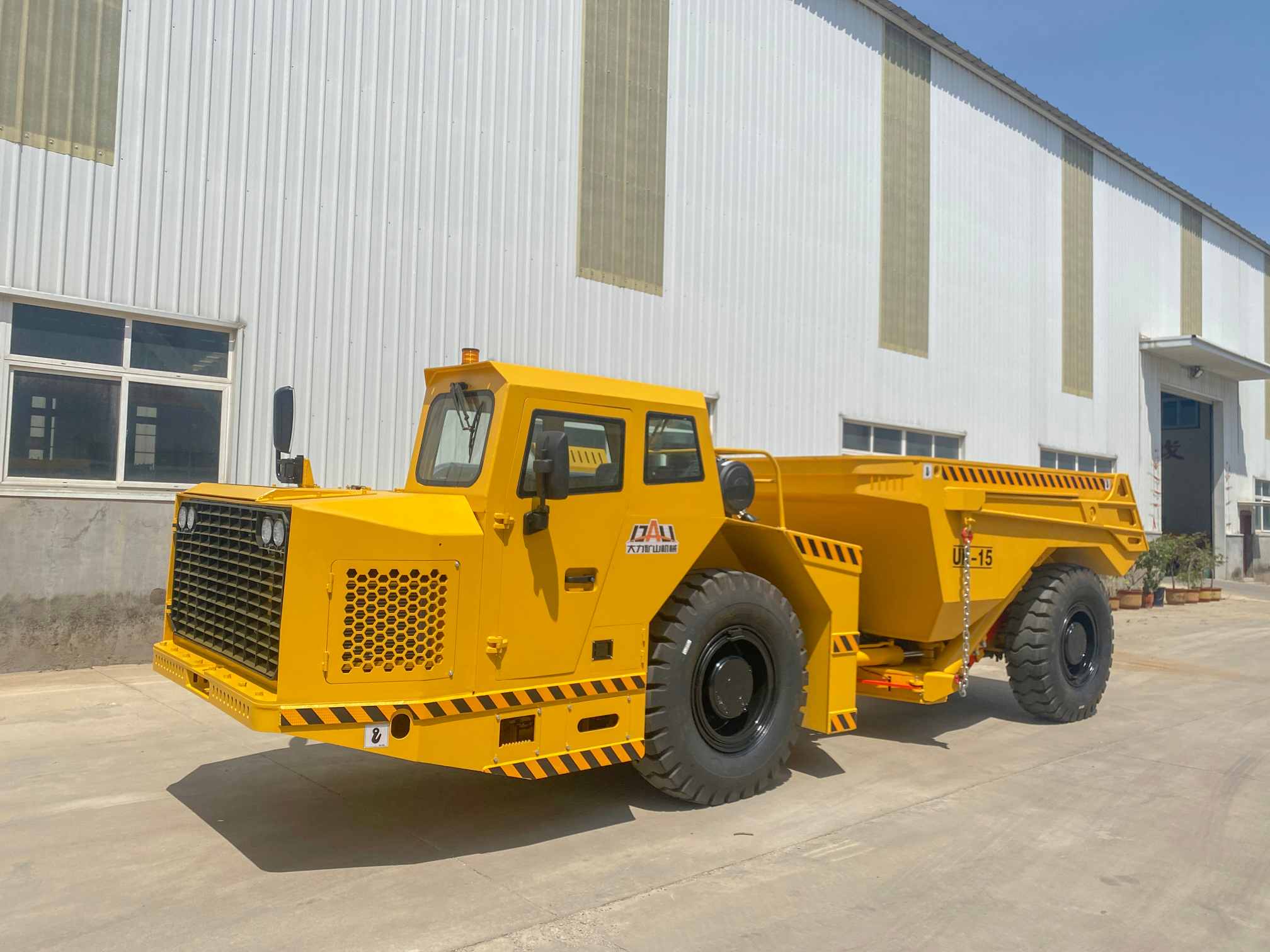

UK-15, low profile articulated mine truck for underground mining. with 15 ton payload capacity. with DEUTZ / CUMMINS / VOLVO engine optional. for small scale underground mine. specially designed for harsh working condition.
UK-15 is a 15 ton articulated truck for underground mining, with DEUTZ or VOLVO engine, DANA transmissin and Kessler axle, with 7.5m3 box SAE standard. apply for small underground mine. best ratio among the same size underground mining trucks.
Main Features
1. Safety
1.1. ISO ROPS/FOPS certified operator’s compartment
1.2. Hydraulic-release (SAHR) brakes
1.3. Articulation safety lock
1.4. Dump box safety support
1.5. Rear-view camera
1.6. Reverse alarm
1.7. Self-lock. Once the door is opened, the vehicle can be locked automatically and can not drive, which can protect the vehicle and personal from being injured.
1.8. Automatic alarm system for oil temperature, oil pressure and electrical system.
2. Small and Lithe
The UK-15 has a compact envelope and offers high manoeuvrability, even in restricted spaces.
3. Maximum Efficiency and Productivity
3.1. The durable UK-15 is impressively fast to haul the materials up the ramp in no time. The truck’s systems and components have been tested and refined through years of real work experience to stand the test of time.
3.2. Manual Central lubrication system.
Industry standard | |
GB∕T 35195-2017 Technical standards for construction machinery and equipment | |
JB/T8436 Standard for tire-type ore trucks for underground mines | |
GB21500 Safety requirements for trackless tire-type mine trucks for underground mines | |
| |
Application | |
Environment Temperature | -25℃~+50℃ |
Mining Altitude | -1500m ~ +5000m |
When working at -1500 ~ +3000 meter, temperature is no higher than 25℃, there is no engine power loss | |
Capacities | |
Tramming capacity | 15000 kg |
Dump box volume | 7.5 m3 |
| |
Main dimensions | |
Overall Size | 7940X2210X2370 mm |
Box Lift Height | 4520 mm |
Wheelbase | 4225 mm |
Min. ground clearance | 340 mm |
Turning radius | 4250 / 7100 mm |
Turning angle | 42° |
Dump angle | 65° |
| |
Speed | |
1st gear | 0~4.5 km/h |
2nd gear | 0~9.8 km/h |
3rd gear | 0~17.8 km/h |
4th gear | 0~23.5 km/h |
| |
Dump Box Motion Time | |
Discharging time | ≤13s |
Box lowering time | ≤10s |
| |
Weight, empty | |
Operation Weight | 15500 kg |
Front axle | 9550 kg |
Rear axle | 5950 kg |
| |
Weight, Loaded | |
Fully Loaded Weight | 30500 kg |
Front axle | 14550 kg |
Rear axle | 15950 kg |
| |
POWER TRAIN | |
Engine | |
Diesel engine | CUMMINS |
Output | 164kw |
Purifier | Catalytic purifier with muffler |
Electric system | 24v |
Cooling system | Water cooling |
Number of cylinders | in-line 6 |
Method of operation | 4-stroke, direct injection with intercooler |
Fuel tank refill capacity | 250L |
| |
Converter | |
Brand | DANA |
Model | C273 |
Transmission |
|
Brand | DANA |
Model | R32000 |
| |
Axle | |
Model | Kessler D81 |
Type | Rigid planetary axle |
Differential | Standard |
Front axle | spring applied hydraulic operated rakes. Oscillating ± 8°. |
Rear axle | spring applied hydraulic operated brakes. Fixed |
| |
Tire | 14.00-24 L-5S TT |
